Rapid LED Oyster

Back to: Categories » Rapid Series » Rapid LED Oyster

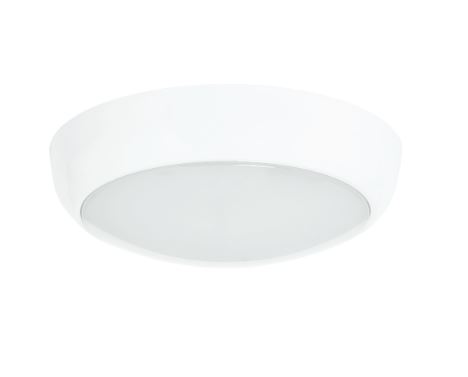

Rapid LED Oyster
Rapid LED Oyster
Rapid LED OysterRapid LED OysterRapid LED OysterRapid LED Oyster

MAINS
FL9872 ECO RAPID LED OYSTER
FL9872Q ECO RAPID LED OYSTER WITH MICROWAVE ON/OFF SENSOR
FL9872D ECO RAPID LED OYSTER DALI

STANDALONE
FL9972/LI ECO RAPID LED OYSTER - LITHIUM
FL9972Q/LI ECO RAPID LED OYSTER WITH MICROWAVE ON/OFF SENSOR - LITHIUM

MASTERMINDER
FLX9972/LI ECO RAPID LED OYSTER - LITHIUM
FLX9972Q/LI ECO RAPID LED OYSTER WITH MICROWAVE ON/OFF SENSOR - LITHIUM

Click below for PDF Files

DATASHEET

INSTALL INSTRUCTIONS

NEW ECO RAPID LED OYSTER

FEATURES

  • Available in Mains, Emergency with and without integrated microwave on/off sensor.
  • Emergency versions utilise Lithium battery technology with T-sense temperature sensing.
  • Tri-colour LED selection (3000K/4000K/5000K).
  • Twist lock cover and hinged gear tray for ease of maintenance.
  • Quick release toggles for fast installation.
  • 5 Year Warranty

APPLICATIONS

  • Schools
  • Rest homes
  • Multi-residential buildings
  • Stairwells
  • Kitchens

TECHNICAL INFORMATION

  • Colour temperature: 3000 K / 4000 K / 5000 K (selectable)
  • Lumen output: 3000K: 1,250 lm 4000K: 1,400 lm 5000K: 1,450 lm
  • Wattage: 15 W
  • CRI>80
  • Battery (Emergency Models): Li-ion 6.4 V, 3.3 Ah
  • LED Light Source Life (LSL) up to 50,000 hrs L70 at ambient temperature up to 25°C.
  • Emergency Classification:
  • C0/C90: D63 (Ceiling mount)
  • C0/C90: D12.5 (Wall mount)
  • Chromaticity Tolerance: ANS1 ANSLG C78.377: 3985K ± 275,
  • MacAdam Ellipse: 3SDCM
  • IK Rating: IK06
  • IP Rating: IP44
  • Construction: Polycarbonate (body)
  • Opal (diffuser)
  • Compliance: AS/NZS 60598.1 and CISPR15

For any additional information please phone 0800 4 FAMCO
