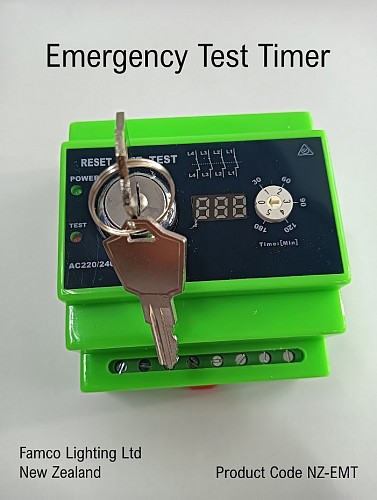

Emergency Lighting Automatic Test Timer

Timer for automatic testing and resetting of Emergency Lights.

Time ranges between, 30 min, 60 min, 90min, 2 hours & 3 hours LED Display Testing time.

Bright green colour makes the test timer easily distinguishable from other components on the Electrical switch board.

Turning the integrated test key forces the output relay to switch into on-position, so the emergency lights are disconnected from the mains and the set interval begins. After the interval has expired the output relay switches into off position and the emergency lights are reconnected to the mains.

Product code: Famco NZ-EMT Test Timer

Power Consumption    2 Watts

Power Supply             AC230-240V;50HZ/60HZ

Time Range               30/60/90/120/180 Minutes

Count Down Display   LED

Operate                    Key

Relay Type                4 Pole non-latching

Relay Load               16A 240V~Maximum

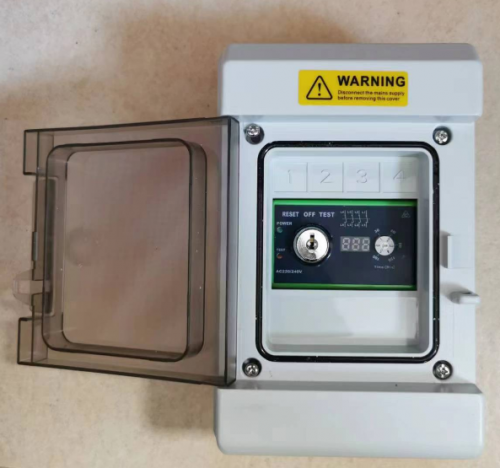

Mounting Type          DIN Rail or Surface Mounted to Swtchboard

IP Rating                  IP20

Dimension                76mm x 92mm x 65mm

Warranty                  3 years

Data Sheet: Famco NZ-EMT Test Timer (Available soon)
