Rapid Site Guard F9979/LI

Back to: Categories » Emergency Lighting » Twin Head Flood » Rapid Site Guard F9979/LI

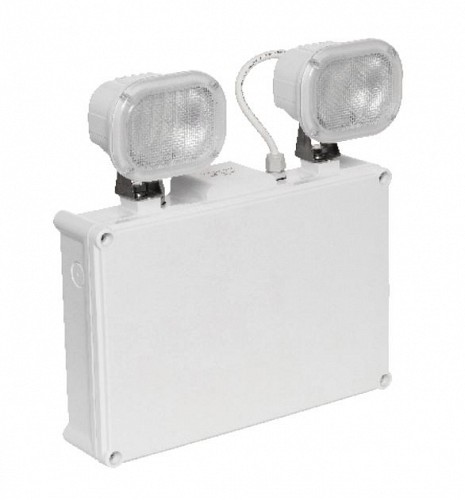

Rapid Site Guard F9979/LI
Rapid Site Guard F9979/LI
Rapid Site Guard F9979/LI

Rapid Site Guard F9979/LI

LED Non-maintained Luminaire for wide range of emergency applications.

Features

  • Energy efficient LED lamp technology
  • T-sense temperature sensing technology for the LIION battery, minimising maintenance costs
  • Environmentally friendly battery
  • Easy to install

  • 3 year warranty

PRODUCTDESCRIPTIONPHOTOMETRICS
FL9979/LIEco Rapid LED Site GuardIES

Technical information

  • Operating Mode: Non-Maintained
  • Nominal Input Voltage: 230-240V a.c. 50Hz
  • Power Consumption: 3W
  • Inrush Current: 4A peak
  • Battery: Li-ion 3.2V, 6.6 Ah
  • Lumen Output: 2x 180 lm
  • Light Source Life (LSL): 50,000 hours
  • Operating Temperature: 10°C to 40°C
  • IP Rating: IP65
  • IK Rating: IK07
  • Body and Diffuser Construction: Polycarbonate Flame retardent
  • Compliance: AS/NZS 2293, AS/NZS 60598
  • Dimensions 280mm W x 300mm H x 73mm D

Datasheet PDF     Instructions PDF
