Port Arlington LED Bollard
Port Arlington LED Bollard
Port Arlington LED BollardJ type mountingPort Arlington LED Bollard

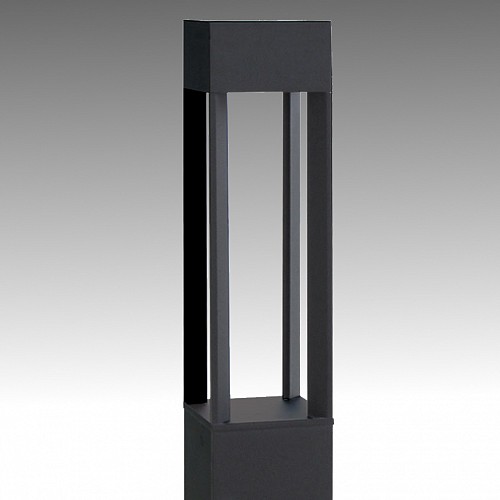

Port Arlington LED Bollard FL88012

FAMCO Portarlington LED IP65 bollard provides superior outdoor lighting and features sturdy construction and high corrosive resistance. Complete with J type mounting plate for quick and easy installation


FEATURES

  • Die-casting aluminium top and extruded aluminium housing with high corrosion resistance
  • Polycarbonate diffuser
  • PMMA soft light diffuser
  • High purity aluminium heat conduction piece
  • Fire-resistant silicon seal gasket
  • Anodized aluminium reflector
  • Internal flange
  • Silicon gasket for IP65 weatherproof rating
  • All wiring, socket and connectors are heat resistant as per IEC. 60598 with CE, VDE, CCC approvals
  • J type mounted plate anchors the counter-flange tightly for quick  and easy installation

LED LAMP

  • LED Power: CREE XPE LED 8 x 2.5W
  • Nominal Lumens: 1900 lumens
  • Nominal Colour Temp: 4000K
  • Rated Average Life: 60,000 Hours
  • Driver: Tridonic Driver

CONSTRUCTION

  • Body: Die-cast aluminium top and extruded aluminium housing with high corrosion resistance
  • Diffuser: Polycarbonate diffuser
  • Silicon gasket: IP65 weatherproof rating
  • Dual Coating: Outdoor powder coated finish with nominal thickness 60 micron – 500 hours salt spray test endurance rating

Click below for PDF Datasheet:

FL88012 Port Arlington LED Bollard


For any additional information please call 0800 4 FAMCO
